White Cable Intelligence Cat5e 100MHz 4-Pair UTP External PE UV-Resistant Fca Solid Copper Cable 305m

White Cable Intelligence Cat5e 100MHz 4-Pair UTP External PE UV-Resistant Fca Solid Copper Cable 305m

SKU:102-0040

Regular price Login to see price
Regular price Login to see price Sale price Login to see price
Sale Sold out

This white Category 5e U/UTP external ethernet cable is manufactured and tested to ISO 11801 & EIA/TIA‐568‐C standards for enhanced performance Cat5e LAN network cables. It can be used in a wide range of networking applications.

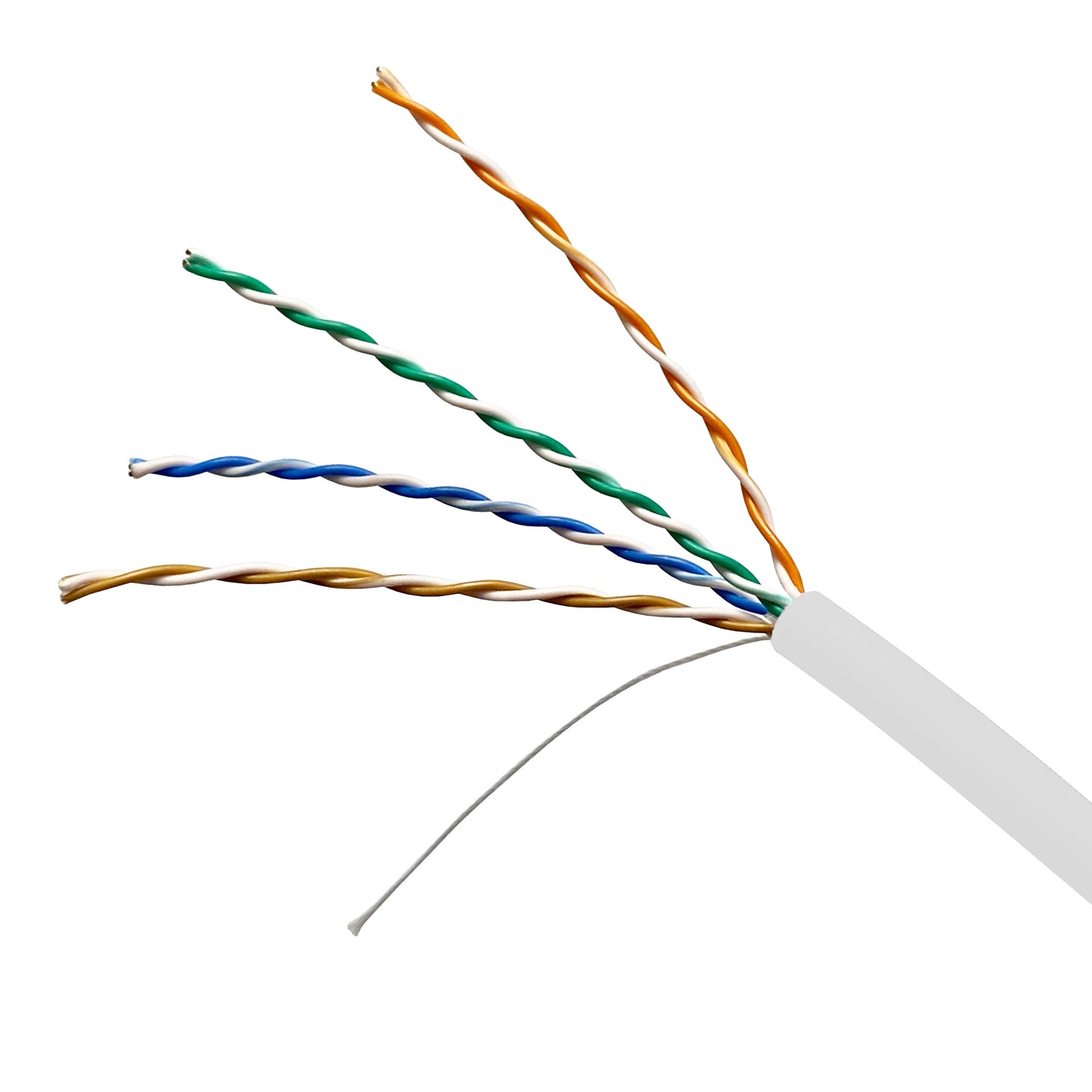

Each cable comprises 8 colour-coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths.

Specification

Conductor Solid Bare Copper Wire
Size 24 AWG
Number of Pairs 4 Pairs
Insulation HDPE Ø 0.90mm (±0.02mm)
Outer Sheath Material Polyethylene
Outer Sheath Dimensions Ø5.20mm, Nominal Thickness 0.50mm (±0.05)
Sheath Colour White
Operating Temperature -40°C to +75°C
Installation Temperature -30°C to +65°C
CPR Class Fca
Conductor DC Resistance 11.0 [Ω/km]
Conductor Resistance Unbalance (%) Max 5.0
Rated Voltage 600V
Characteristic Impedance 100Ω (±15)
Velocity Ratio 66%
Voltage Rating 600V
Spark Test 2.5kV
