Grey Cable Intelligence Cat6 250MHz 4-Pair UTP PVC Eca Solid Copper Cable 305m
Grey Cable Intelligence Cat6 250MHz 4-Pair UTP PVC Eca Solid Copper Cable 305m
SKU:107-0027
This Category 6 U/UTP PVC ethernet cable is manufactured and tested to ISO 11801 & EIA/TIA‐568‐C standards for enhanced performance Cat5e LAN network cables. It can be used in a wide range of networking applications.

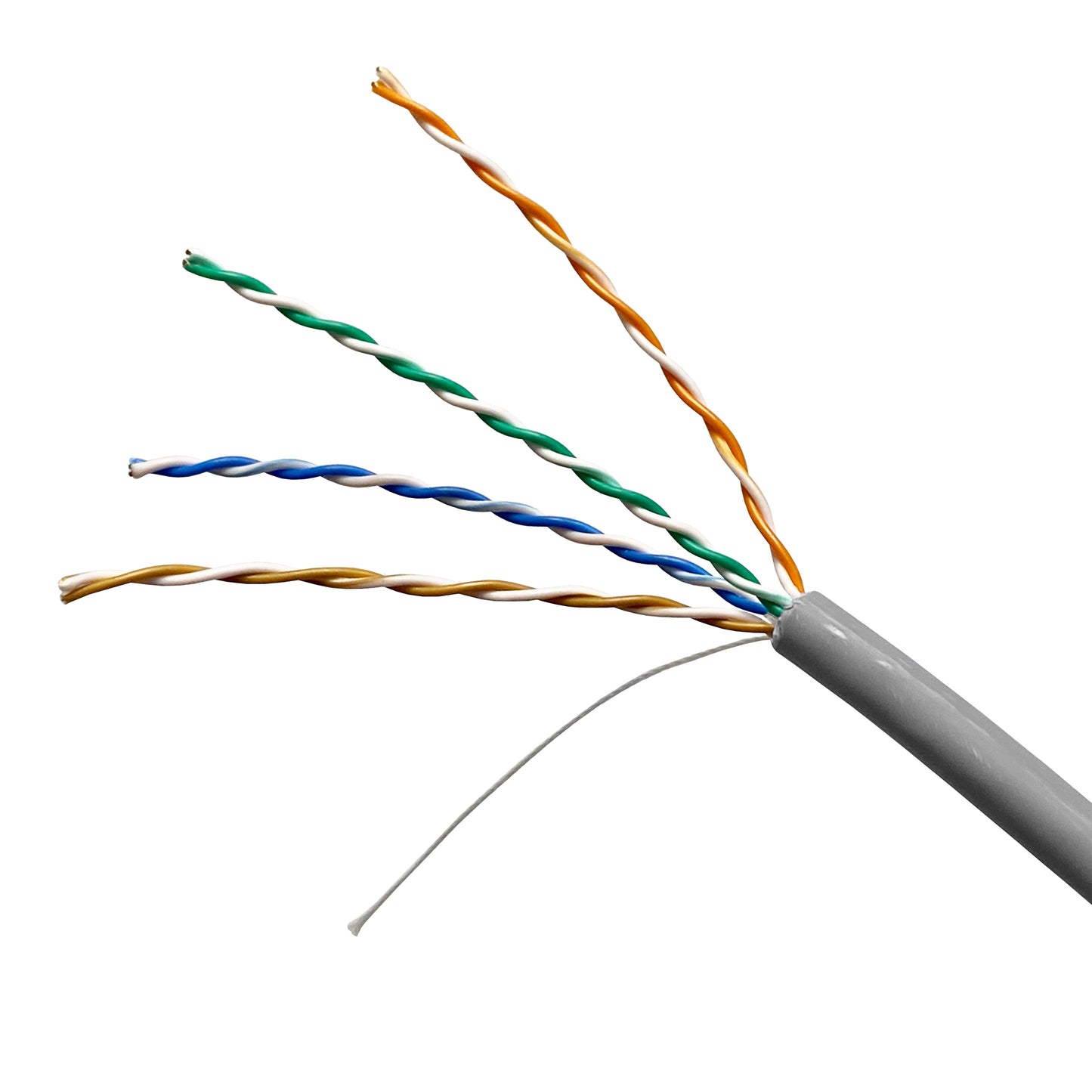

Each cable comprises 8 colour-coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. Together with a strong nylon rip cord, these pairs are jacketed in a heat-resistant PVC material.
Specification
| Conductor | Solid Bare Copper Wire |
| Size | 23 AWG |
| Number of Pairs | 4 Pairs |
| Insulation | HDPE Ø 0.98mm (±0.02mm) |
| Outer Sheath Material | PVC |
| Outer Sheath Dimensions | Ø6.50mm Nominal Thickness 0.55mm (±0.05) |
| Sheath Colour | Grey |
| Operating Temperature | -40°C to +75°C |
| Installation Temperature | -30°C to +65°C |
| CPR Class | Eca |
| Conductor DC Resistance | 93.8 [Ω/km] |
| Conductor Resistance Unbalance (%) Max | 5.0 |
| Rated Voltage | 600V |
| Characteristic Impedance | 100Ω (±15) |
| Velocity Ratio | 72% |
| Voltage Rating | 600V |
| Spark Test | 2.5kV |
