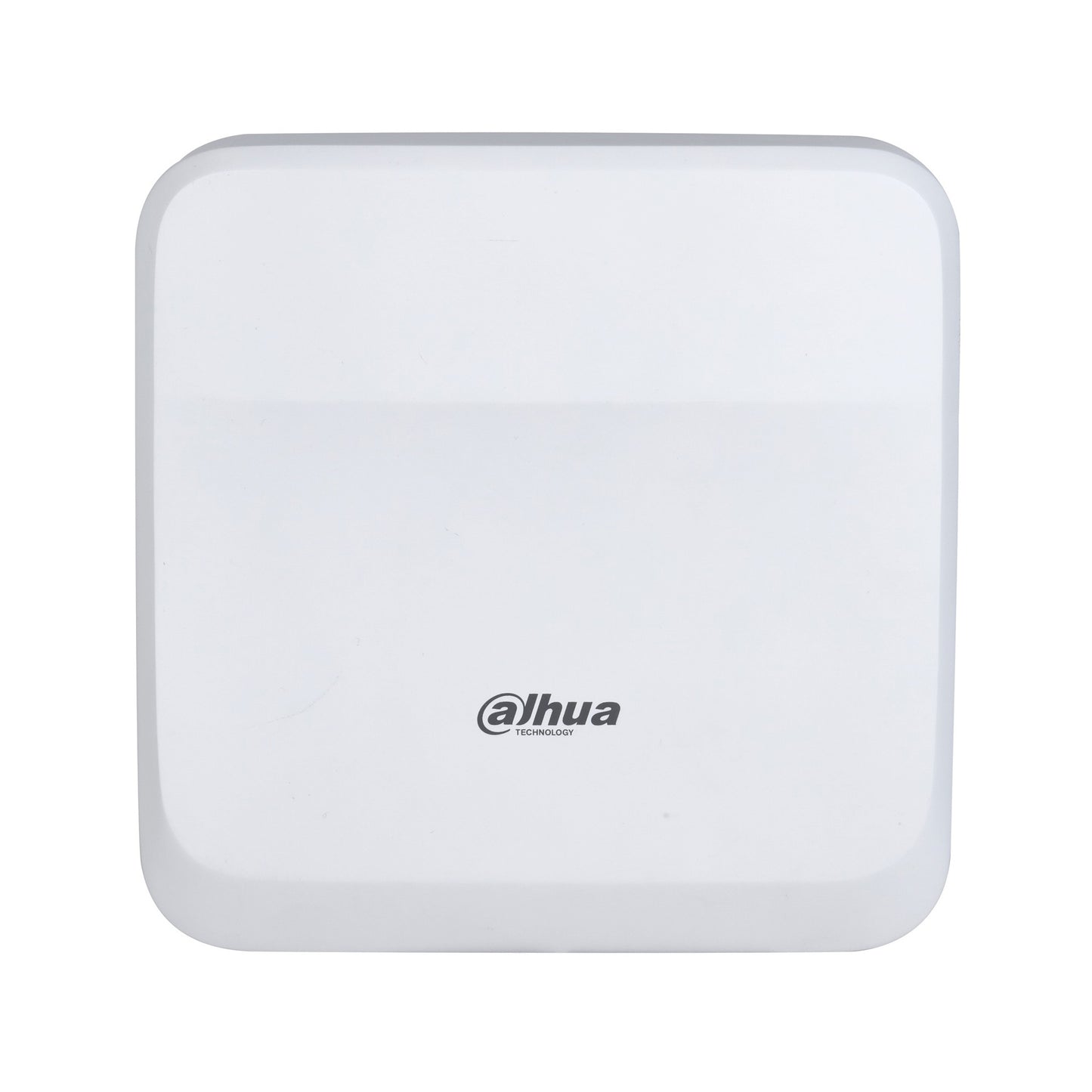

Dahua Single Door Web Server Based Access Control Unit, Up to 19 Subcontrollers, RS485/Weigand Reader Connections, 12Vdc or PoE (Power Maglock up to 1A)
Dahua Single Door Web Server Based Access Control Unit, Up to 19 Subcontrollers, RS485/Weigand Reader Connections, 12Vdc or PoE (Power Maglock up to 1A)
SKU:DHA-ASC3202B
Regular price
Regular price
Sale price
Unit price
per
CALL US FOR A QUOTE NOW - 01684 299 223
Key Features
- Built-in Web server, features main and sub control modes.
- The main control mode offers access control Platform functions, can connect with and manage up to 19 sub controllers. The sub-control modes can be added to multiple platforms.
- Supports 1000 users, 3000 fingerprints, and 300,000 records
- Accesses card readers through Wiegand and RS-485 protocols.
- Supports TCP and IP connection, and standard PoE.
- Supplies power to the lock through its 12 VDC output power supply, which has a maximum output current of 1000 mA.
- Supports configuring the hardware I/O port and exporting configuration diagrams
- Retains stored data even while powered off
Downloads
| Datasheet | Download |
