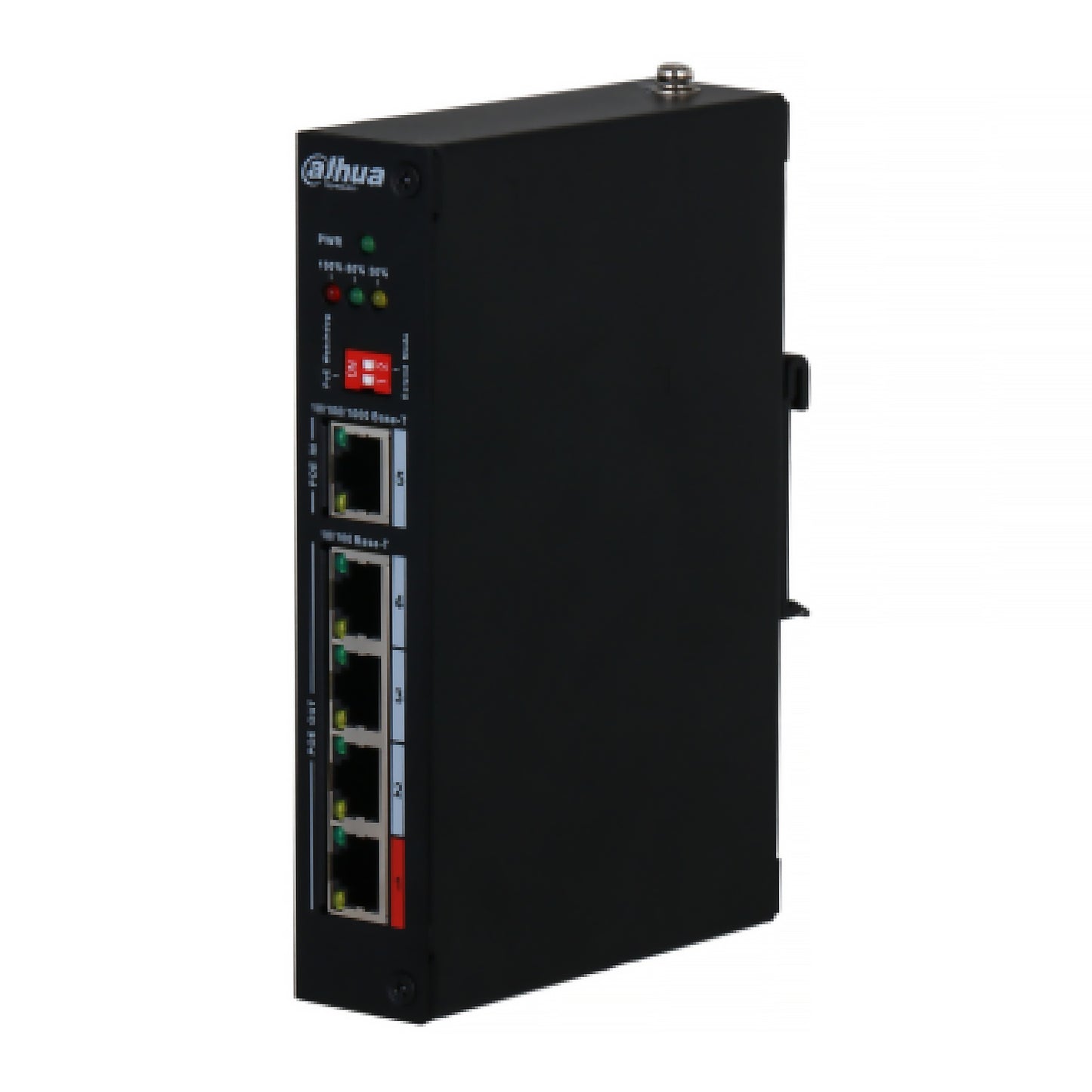

Dahua PoE Extender, 1 x PoE In (max 90W), 4 x PoE Out (Port 1 up to 90W, Port 2-4 up to 30W each, max Total Output 90W)

Key Features

• 4 x 100 Mbps PoE Ethernet ports, 1 × 1000 Mbps PoE Ethernet port
• All ports meet the requirements of IEEE802.3af and IEEE802.3at standards. The red ports also conform with Hi-PoE and IEEE802.3bt standards.
• 250m long-distance PoE transmission, which can be enabled by the DIP switch
• PoE Watchdog for real-time detection of terminal device status
• Fanless
• Full-metal
• Lightning Protection: common mode: 4 kV, differential mode: 2 kV
• Desktop mount and DIN-rail mount
